LoRa Antenna

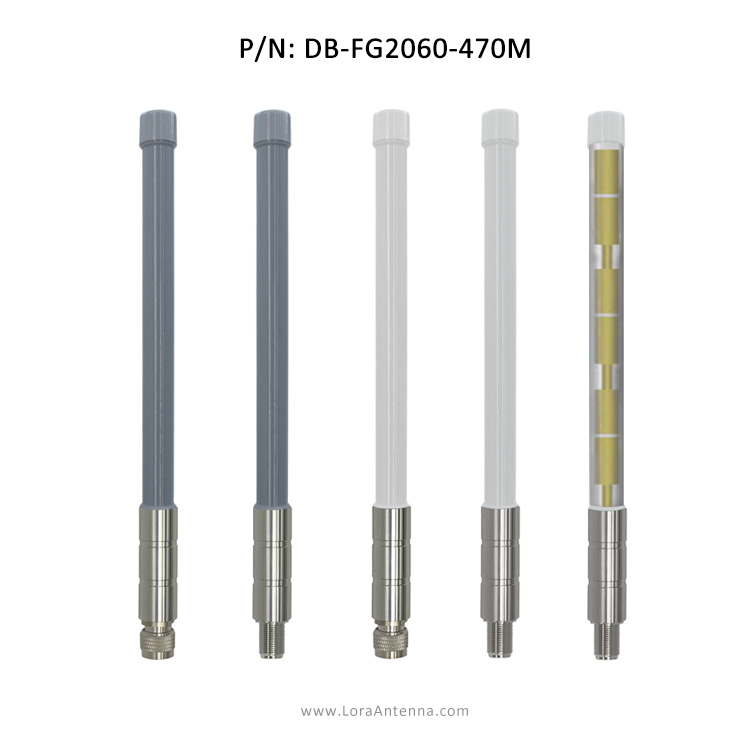

470mhz Lora Fiberglass Antenna DB-FG2060-470M
Type: 470MHz 490MHz 510Mhz Fiberglass Antenna
Part Number: DB-FG2060-470M
Freq Range: 470-510MHz
Center Freq: 490MHz
Gain: 3dBi
enquiry- Specifications
- Remark
Type: 470mhz Lora Fiberglass Antenna DB-FG2060-470M
| Part Number: | DB-FG2060-470M |
| Freq Range: | 470-510MHz |
| Center Freq: | 490MHz |
| Gain: | 3dBi |
| VSWR: | <=1.5 |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 50 W |

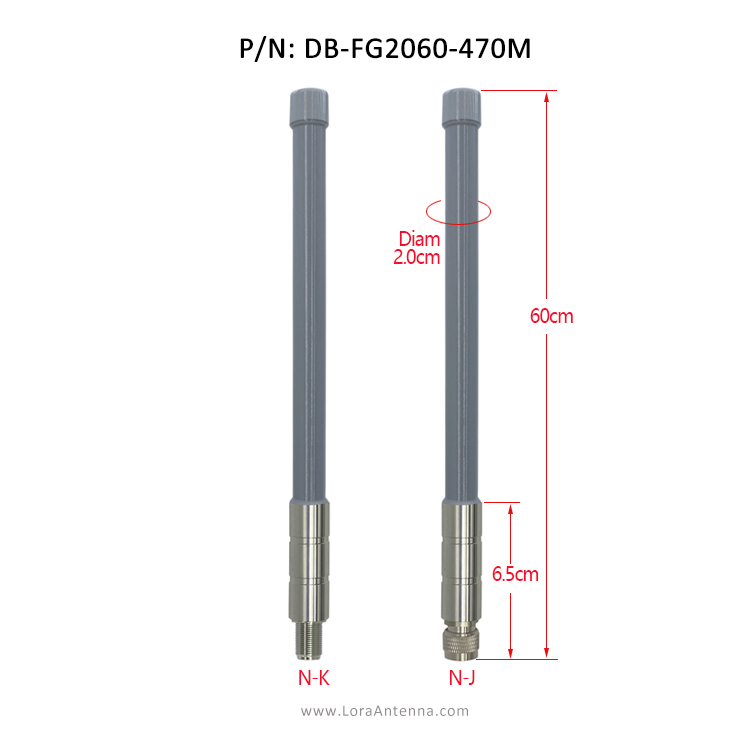

| Antenna Dimensions: | H60cm*D23mm |

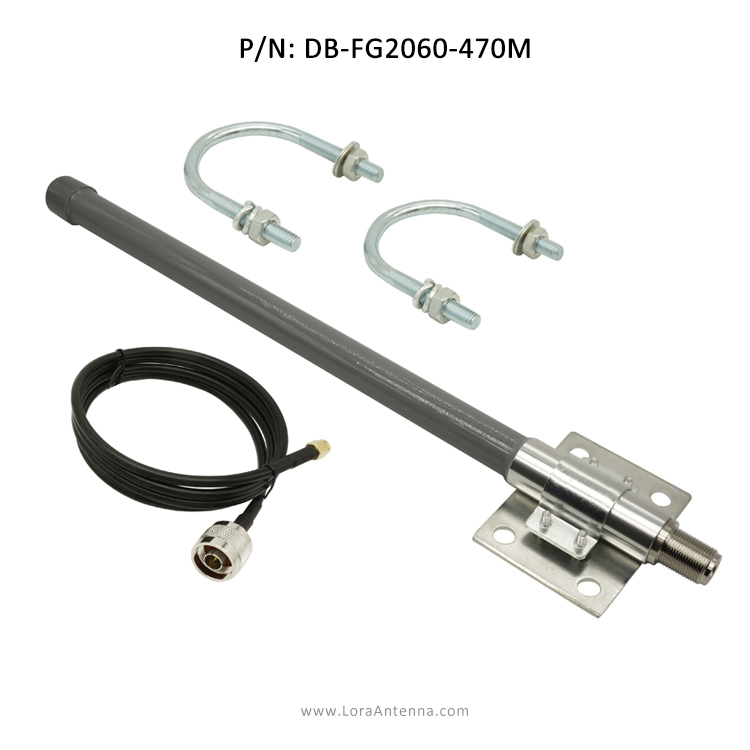

| Mounting Method: | Bracket Mount |
| Connector Type: | N-J, N-K optional |

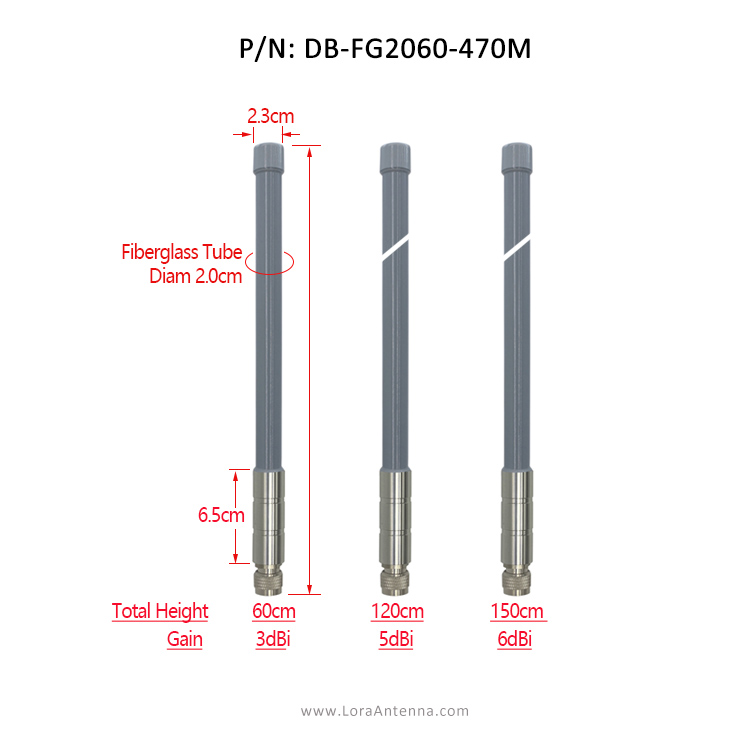

For Gray Color Fiberglass Tube:
| Part Number | Antenna Height | Gain |
| DB-FG2060-470M | 60cm | 3dBi |
| DB-FG20120-470M | 120cm | 5dBi |
| DB-FG20150-470M | 150cm | 6dBi |
MOQ: 10 PCS
Inner Pack: Plastic bag
Outer pack: Carton
Payment: T/T, Paypal, WesternUnion
Delivery : 3- 5 working days
