LoRa Antenna

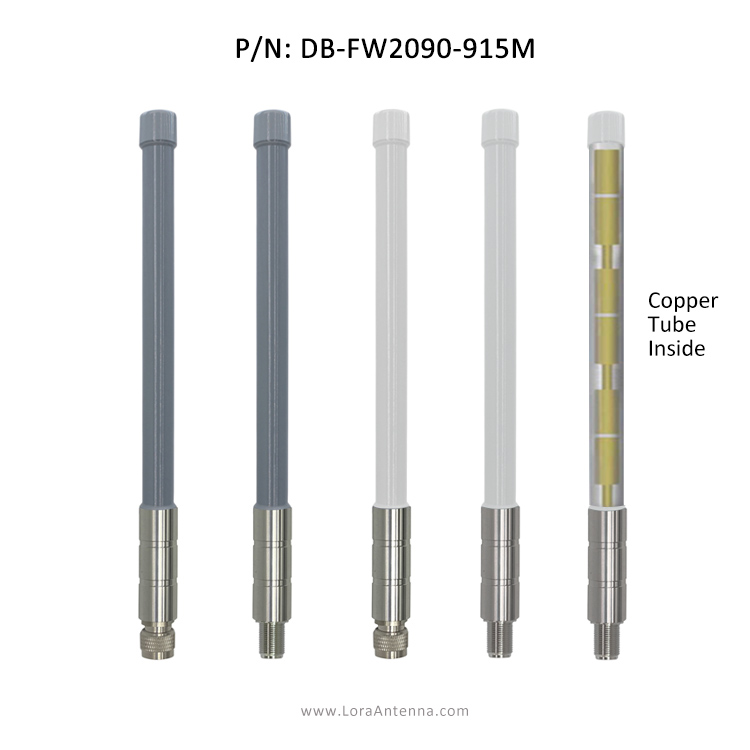

5.8dBi Fiberglass Antenna 915mhz Lora DB-FW2090-915M
Type: 915mhz Lora 5.8dBi Fiberglass Antenna
Part Number: DB-FW2090-915M
Freq Range: 900-930MHz
Center Freq: 915MHz
Gain: 5.8dBi
enquiry- Specifications
- Remark
Type: 5.8dBi Fiberglass Antenna 915mhz Lora DB-FW2090-915M
| Part Number: | DB-FW2090-915M |
| Freq Range: | 900-930MHz |
| Center Freq: | 915MHz |
| Gain: | 5.8dBi (6dBi) |
| VSWR: | <=1.5 |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 50 W |

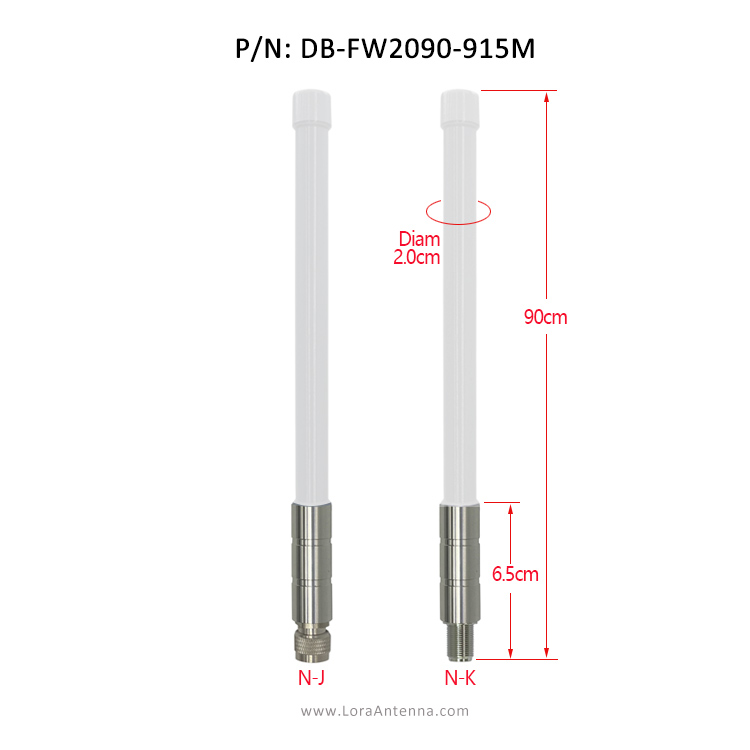

| Antenna Dimensions: | H900mm*D23mm |

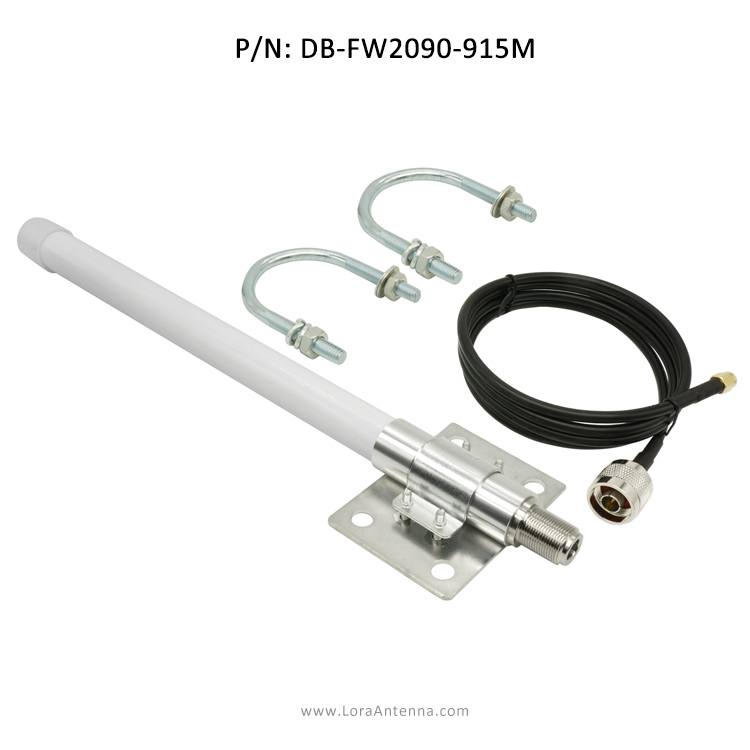

| Mounting Method: | Bracket Mounting |
| Connector Type: | N-J, N-K optional |

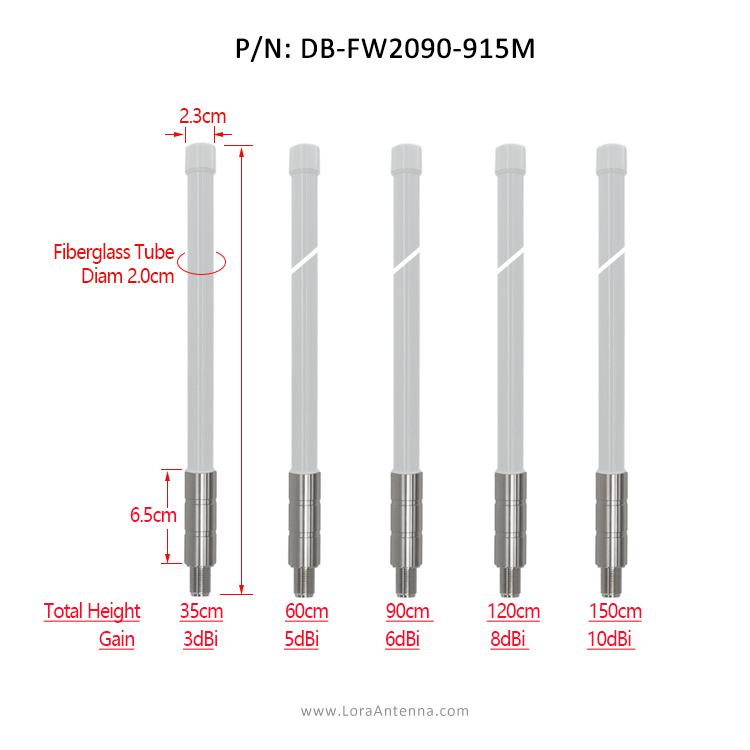

For White Color Fiberglass Tube:
| Part Number | Antenna Height | Gain |
| DB-FW2035-915M | 35cm | 3dBi |
| DB-FW2060-915M | 60cm | 5dBi |
| DB-FW2090-915M | 90cm | 5.8dBi (6dBi) |
| DB-FW20120-915M | 120cm | 8dBi |
| DB-FW20150-915M | 150cm | 10dBi |
| DB-FW20180-915M | 180cm | 12dBi |
MOQ: 10 PCS
Inner Pack: Plastic bag
Outer pack: Carton
Payment: T/T, Paypal, WesternUnion
Delivery : 3- 5 working days
Lora 915MHz antenna
